Fresenius 4008B Dialysis Machine

Fresenius 4008B Dialysis Machine
Fresenius 4008B Dialysis Machine
Send Inquiry
Product Code : HSIL-E00216
Brand Name : FRESENIUS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 350000 INR
Product Description

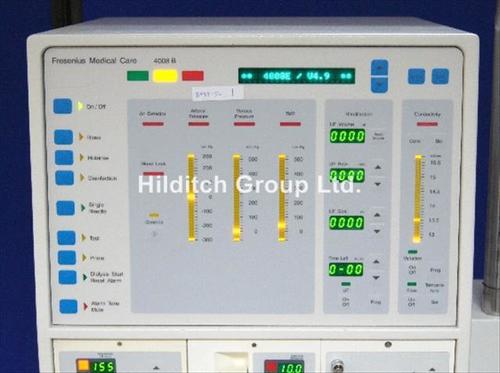

Fresenius 4008B Dialysis Machine

Fresenius Dialysis Machine has been developed to provide safety and efficiency for all important treatment moralities within the scope of renal replacement therapies.

This includes:

  • Bicarbonate or acetate dialysis
  • Single-needle or single-needle click-clack
  • Isolated ultra-filtration

The automated acquisition, monitoring and control of specific patient and machine parameters with the 4008B hemodialysis machine provide the operator with continuous and precise assessment of the current treatment situation.

Key features of the 4008B hemodialysis machine include:

  • Treatment with ultra-pure dialysis fluid (DIASAFE®plus filter)
  • Use of hygienic, dry bicarbonate concentrate (Bibag®)
  • Connection for central concentrate supply

In addition, the following therapeutic tools are available:

  • Blood pressure monitor (BPM)
  • Easy data management with patient card (offline) or network integration (online)
Specifications:
  • Dimensions: 1330 x 495 x 340 mm
  • Weight: approx. 80 kg

Water Supply:

  • Inlet Pressure: 1 .5—6.0 bar
  • Water Inlet Temperature: 5-30o C

Electrical Data:

Power Supply: 230 v - 10 % A, 50 Hz
Current Consumption: max 9 A

Venous Pressure Monitoring:

  • Display Range: -60 mmhg to 520 mmgh
  • Accuracy: +/- 10 mmhg
  • Resolution: 20 mmhg

Trans Membrane Pressure:

  • Display range: -60 mmhg to + 500 mmhg
  • Resolution: 20 mmhg

Arterial Blood Pump:

  • Blood Flow Range: 10-600 ml/min
  • Accuracy: +/- 10%
  • Air Bubble Detector: By ultra sound transmission,
  • Additional optical monitoring

Heparin Pump:

  • Delivery Range: 0 to 10 ml
  • Bolus Function: max 5 ml per bolus
  • Syringe Size: 20 ml, 30 ml and 50 ml

Dialysate Fluid Circuit:

  • Selectable: 0 – 300 - 500 ml/min
  • Dialysate Fluid Temperature: Selectable: 35-39o C

Dialysate Fluid Conductivity:

  • Range: 12.8 to 15.7 ms/cm. accuracy : +/- 0.1 ms/cm

Sodium Concentration Dialysis Fluid:

  • Default Mixing Ratio: 1 + 34
  • Range: - 13 to +13 mmol/bicarbonate

Bicarbonate Concentration:

  • Default Mixing Ratio: 1 + 27.6
  • Range: - 8 to + 8 mmol/l bicarbonate
  • Balancing Accuracy: +/- 0.1 % of the dialysate flow

Ultra Filtration:

  • UF Rate: 0 to 4 lph
  • Accuracy: =/- 0.5%
  • Allowed Dialyser UF Factor: unlimited
  • Parameter Displayed: uf goal/uf time/uf rate/uf volume
  • Blood Leak Detector: Sensitivity:

Disinfection and Cleaning Programs:

  • Rinse: Temperature: 37oc/600 ml/min
  • Hot Rinse: Temperature: 85oc/450 ml/min
  • Cleaning Sportal: Temperature: 37
Trade Information
  • FOB Port
  • NHAVA SEVA
  • Payment Terms
  • Cash Against Delivery (CAD)
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
