Fresenius 4008B Dialysis Machine

Next > >

<< Previous

Get a Price/Quote

Send Inquiry

Product Code : 09

Price And Quantity

Minimum Order Quantity
1-2 Piece
Price Range
1100000.00 - 1500000.00 INR/Piece

Product Description

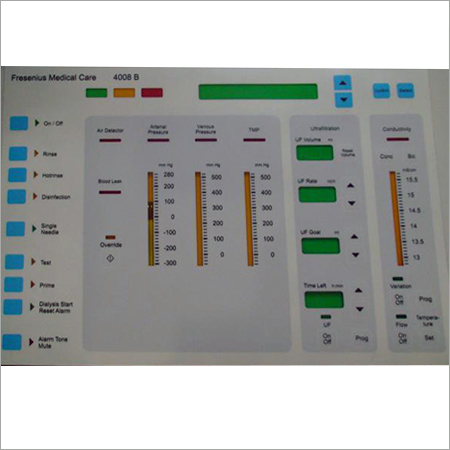

Fresenius 4008B Dialysis Machine

Fresenius Dialysis Machine has been developed to provide safety and efficiency for all important treatment moralities within the scope of renal replacement therapies.

This includes:

Bicarbonate or acetate dialysis
Single-needle or single-needle click-clack
Isolated ultra-filtration

The automated acquisition, monitoring and control of specific patient and machine parameters with the 4008B hemodialysis machine provide the operator with continuous and precise assessment of the current treatment situation.

Key features of the 4008B hemodialysis machine include:

Treatment with ultra-pure dialysis fluid (DIASAFEplus filter)
Use of hygienic, dry bicarbonate concentrate (Bibag)
Connection for central concentrate supply

In addition, the following therapeutic tools are available:

Blood pressure monitor (BPM)
Easy data management with patient card (offline) or network integration (online)

Specifications:

Dimensions: 1330 x 495 x 340 mm
Weight: approx. 80 kg

Water Supply:

Inlet Pressure: 1 .56.0 bar
Water Inlet Temperature: 5-30^o C

Electrical Data:

Power Supply: 230 v - 10 % A, 50 Hz
Current Consumption: max 9 A

Venous Pressure Monitoring:

Display Range: -60 mmhg to 520 mmgh
Accuracy: +/- 10 mmhg
Resolution: 20 mmhg

Trans Membrane Pressure:

Display range: -60 mmhg to + 500 mmhg
Resolution: 20 mmhg

Arterial Blood Pump:

Blood Flow Range: 10-600 ml/min
Accuracy: +/- 10%
Air Bubble Detector: By ultra sound transmission,
Additional optical monitoring

Heparin Pump:

Delivery Range: 0 to 10 ml
Bolus Function: max 5 ml per bolus
Syringe Size: 20 ml, 30 ml and 50 ml

Dialysate Fluid Circuit:

Selectable: 0 300 - 500 ml/min
Dialysate Fluid Temperature: Selectable: 35-39^o C

Dialysate Fluid Conductivity:

Range: 12.8 to 15.7 ms/cm. accuracy : +/- 0.1 ms/cm

Sodium Concentration Dialysis Fluid:

Default Mixing Ratio: 1 + 34
Range: - 13 to +13 mmol/bicarbonate

Bicarbonate Concentration:

Default Mixing Ratio: 1 + 27.6
Range: - 8 to + 8 mmol/l bicarbonate
Balancing Accuracy: +/- 0.1 % of the dialysate flow

Ultra Filtration:

UF Rate: 0 to 4 lph
Accuracy: =/- 0.5%
Allowed Dialyser UF Factor: unlimited
Parameter Displayed: uf goal/uf time/uf rate/uf volume
Blood Leak Detector: Sensitivity:

Disinfection and Cleaning Programs:

Rinse: Temperature: 37^oc/600 ml/min
Hot Rinse: Temperature: 85^oc/450 ml/min
Cleaning Sportal: Temperature: 37

Product details

Accuracy	+/- 10 mmhg
Current Consumption	max 9 A
Dimensions	1330 x 495 x 340 mm
Display Range	-60 mmhg to 520 mmgh
Inlet Pressure	1 .5 - 6.0 bar
Power Supply	230 V - 10 % A, 50 Hz
Resolution	20 mmhg
Water Inlet Temperature	5-30 deg C
Weight	80 kg (Approx)
Brand	Fresenius
