Operational efficiency Hemodialysis involves a large number of demanding manual operations all around the hemodialysis machine. The ergonomic design and the logical operating structure of The Next Generation 4008S permit easy handling as well as fast and intuitive programming of the treatment parameters. Important treatment values are represented graphically on the 10.4 TFT-LCD monitor, which supports easy comprehension of the ongoing treatment, and provides a fast overview of the treatment history. The Blood Pressure Monitor (BPM) is fully integrated, which further simplifies handling for the therapy providers. In combination with the Therapy Data Management System (TDMS) daily dialysis practice can be organized in a more effective and efficient manner taking full advantage of an online data acquisition and management tool.
Ultrapure dialysate fluid is acknowledged to be an integral part of all contemporary dialysis equipment. Naturally the DIASAFE plus is an essential part of the
basic configuration of all current Fresenius Medical Care dialysis machines.

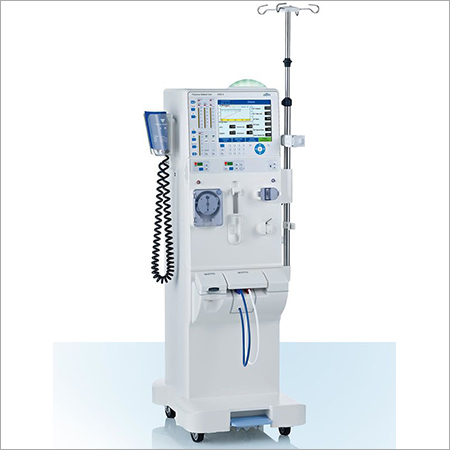

The latest member of a long established and highly successful 4008 series
Advanced treatment
High-quality HD treatment to protect your patient
Operational efficiency
Cost effective use of resources
General data | |
Dimensions 4008SWeight | 1370 x 500 x 650 mm (H x W x D) (including shunt interlock and pedestal) approx. 86 kg |
Water supply | |
Water inlet pressure | 1.5 to 6.0 bar |
Water inlet temperature | 5C to 30C; for integrated hot rinse 85C to 95C |
Max. drain height | 1 m |
Concentrate supply | |
Supply pressure | 0 to 100 mbar; 1 m max. suction height |
Central supply | 1 central acid concentrate (optional) 0 to 500 mbar |
Electrical data | |
Power supply | 100 to 240 V AC, 50 to 60 Hz |
Current consumption | Approx. 9 A (at 230 V) and 15 A (at 110 V) |
External connections | Network interface for data exchange with Therapy Data Management System (optional); input/output for connection of external auxiliary equipment; alarm input/output (e.g. for nurse call); diagnosis for in-house computer diagnosis |
Battery | 18 V; 3 Ah (maintenance free) |
Product details
Battery | 18 V; 3 Ah (maintenance free) |
Central Supply | 1 central acid concentrate (optional) 0 to 500 mbar |
Current Consumption | Approx 9 A (at 230 V) and 15 A (at 110 V) |
Dimensions | 1370 x 500 x 650 mm (H x W x D) |
Maximum Drain Height | 1 m |
Power Supply | 100 to 240 V AC, 50 to 60 Hz |
Supply Pressure | 0 to 100 mbar, 1 m max. suction height |
Water Inlet Pressure | 1.5 to 6.0 bar |
Water Inlet Temperature | 5 to 30 deg C |
Weight | 86 kg |
Operation Mode | Automatic |
Types Of Dialysis Machine | Home Use |
Brand | Fresenuis |
Usage/Application | Haemodialysis |
![]() |
